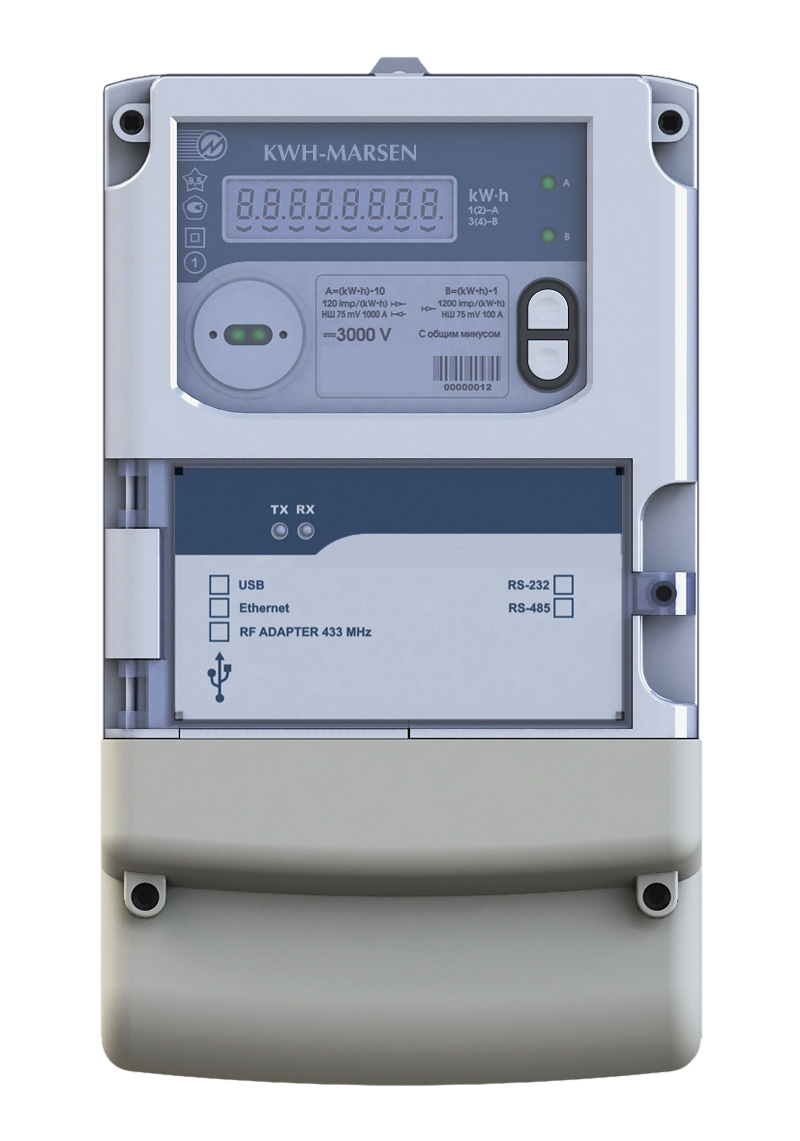

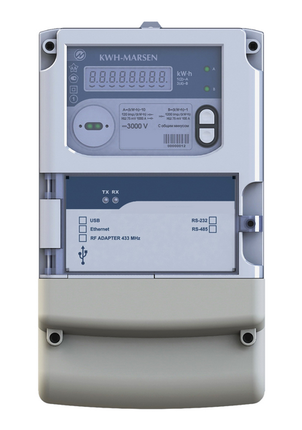

DC Energy Meter

National Registry: No 58638-20 (extended until 01.04.2030)

Calibration interval: 3 years

Accuracy class: 0.5 / 1

Purpose

Accuracy class with respect to energy measurements 0.5 or 1

Rated current: 5 to 7500 A

Rated voltage: 100 to 3000 V


Advantages (over conventional instruments of the same type):

basic electric energy input/output values are recorded in the form of profiles (current, voltage, power, energy, traction line voltage) and displayed as tables or graphs

selectable averaging interval from 1 s to 30 min. Logging capacity of input/output values: 1 day (min) – at 1 s interval

3 years (min) – at 30 min interval
accepts signals from two different current sensors via its two galvanically isolated (with an external isolating transformer) current measurement channels: e.g. from locomotive motor and on-board apparatus, or from on-board lighting and auxiliaries
energy values are recorded for both directions
display cumulative values for energy of different types
readings (currents, powers, mains voltage, etc.) are continuously recorded in user-specified intervals
automatic event log recording
multilevel password protection
data exchange with external devices (PC) via Ethernet, RS-485, RS-232, or USB (depending on design version)
wireless data exchange (built-in RF module)у;
display of measured values on the built-in display or external device (e.g. laptop) via USB

Software

 OprosSKVT 1.7.3

Scope of supply

Монтажная панель
Mounting panel
Textolite laminate panel for enhanced meter insulation at high voltages
Программное обеспечение
Software

ДТ
CT
Current transducer for scaled conversion of current to voltage
Шунт токовый
Current Shunt
Shunt for scaled conversion of current to a 75 mV voltage signal
БУП
BUP
Ballast power unit
ПП
PP
Power conversion unit
Интерфейсные модули
Interface Modules
Modules for RS-232, USB, and RF (radio) communication
Адаптер АО-USB
AO-USB Adapter
Optical probe
AR-1, AR-2
AR-1, AR-2
Short-range radio adapters with bidirectional data communication
