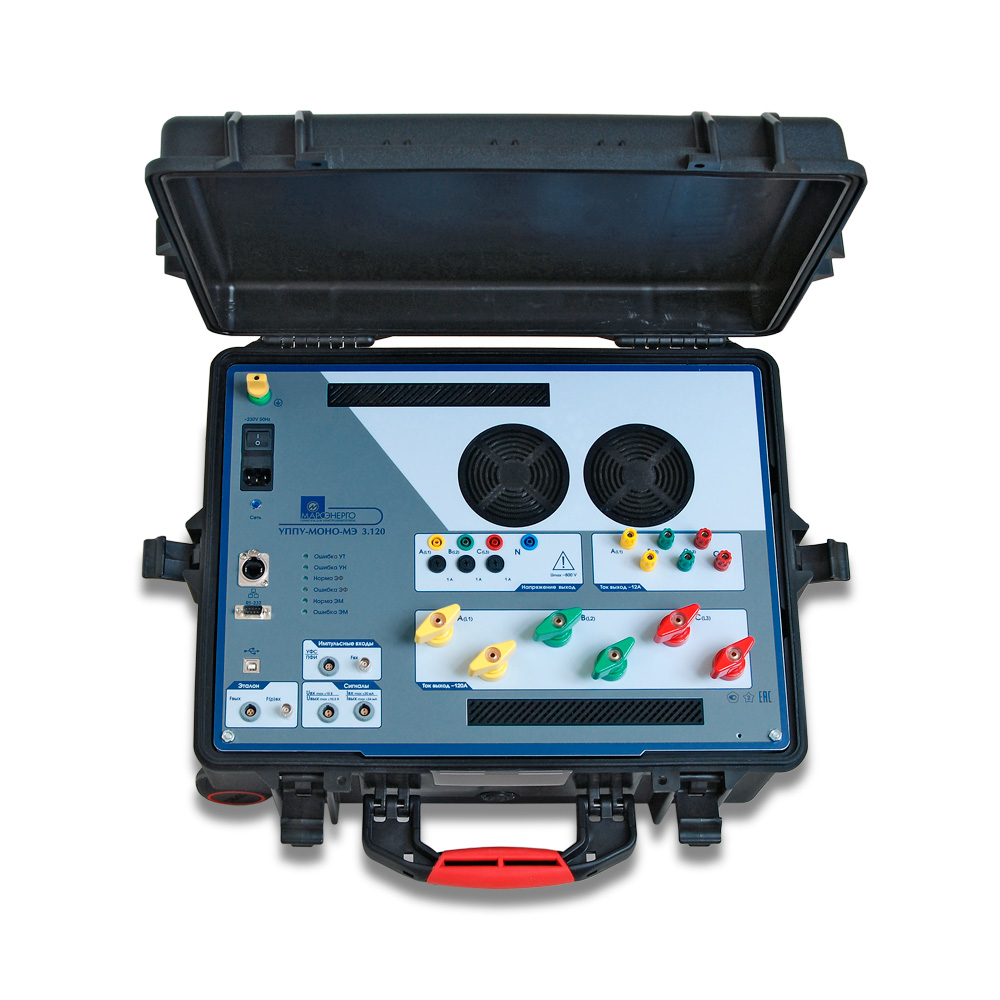

MTS-MONO-ME 3.120

National Registry Number 89778-23

Portable test system

The MTS-MONO-ME 3.120 is a compact portable test system designed for accuracy testing/verification/calibration of smart energy meters and measuring transducers.

It combines three instruments in one: a reference meter, a current and voltage source and a volt-mA calibrator/error calculator.

Accuracy class: 0.05

Purpose

The MTS-MONO-ME 3.120 is intended for verification and calibration of:

	energy meters of 0.2S accuracy class (or less accurate) including: - transformer and direct connected meters - single and three-phase smart energy meters with power quality measurement function (class 0.2S) Test scheme
	Measuring transducers with unified DC current and voltage signals Test scheme

Application

The MTS-MONO-ME 3.120 can be used both in the laboratory and field conditions.

With the MTS-Service software, testing is performed automatically including generation of test reports (complete with environmental data according to ISO/IEC 17025-2009 as well).

Foreign analogues

The closest analogues:

- Three phase portable test system PTS 3.3 Cproduced by MTE (EMH Energie-Messtechnik GmbH, Germany) - Portable Test SystemMT786 produced by ZERA (ZERA GmbH, Germany)

Basic technical data

Parameter	Range	Measurement error
Voltage Ranges: Unom = 60, 120, 240, 480 V	3 ... 576 V	% of reference ±0.02 % + ∆
Current Ranges: Inom = 0.05, 0.1, 0.25, 0.5, 1, 2.5, 5, 10, 25, 50, 100 А	1 mA ... 120 A	% of reference ±0.02 % + ∆

Parameter

Range

Measurement error

Voltage

Ranges: Unom = 60, 120, 240, 480 V

3 ... 576 V

% of reference

±0.02 % + ∆

Current

Ranges: Inom = 0.05, 0.1, 0.25, 0.5, 1, 2.5, 5, 10, 25, 50, 100 А

1 mA ... 120 A

% of reference

±0.02 % + ∆

∆: additional error

Parameter	Output setting range	In increments of	Value
Voltage Ranges: Unom = 60/220 V Distortion Max output power per phase	3 ... 600 V	0.01 V	≤1 % 30 VA
Current Ranges: Inom = 1, 10, 100 A Distortion Max output power per phase	1 mA ... 120 A	1 mA	≤1 % 60 VA

Parameter

Output setting range

In increments of

Value

Voltage

Ranges: Unom = 60/220 V

Distortion

Max output power per phase

3 ... 600 V

0.01 V

≤1 %

30 VA

Current

Ranges: Inom = 1, 10, 100 A

Distortion

Max output power per phase

1 mA ... 120 A

1 mA

≤1 %

60 VA

Parameter	Range	Measurement error
Input		% of reference
DC voltage	–15...+15 V 0...15 V	±0.03 %
DC current	–7.5...+7.5 mA 0 ... 30mA	±0.05 %
Output		Absolute
DC voltage	–10.5...+10.5 V	±0.002
DC Current	–24...+24 mA	±0.005

Parameter	Input	Output
Pulse level	5 ... 15 V	5 V
Frequency (max)	36 kHz	18 kHz
Pulse duration	>14 µs	10 ± 2 µs
Constant	1 ... 999 999 999 pulse/(kW • h)	C = 144 • 108/(Inom • Unom) pulse/(W • h)

AC power consumption

400 VA, or less

Mains supply

195 ... 253 V
47 ... 63 Hz

Operating temperature range

+10 to +35 °C

Weight

16 kg,or less

Benefits

	Compact size (3 instruments in one unit)
	PC with MTS-Service software installed (serves for automatic control of test procedures and generation of test reports) is included in the standard supply

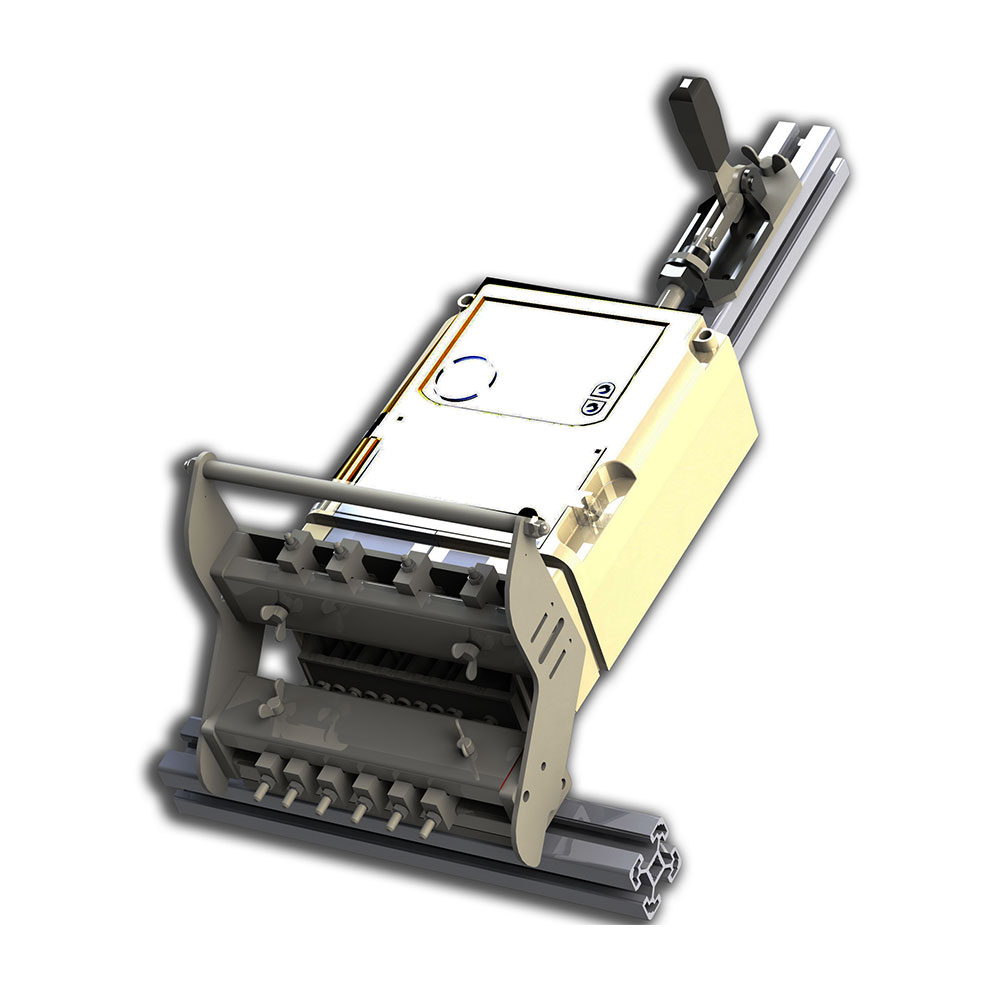

	Meter connection time is minimized
