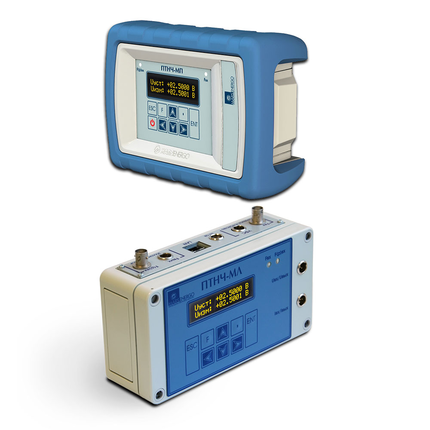

Calmar-SP

CALMAR-S

Volt/mA calibrator

National Registry: No 69182-2017 (extended until 16.11.2027)

Calibration interval: 2 years

Accuracy class: 0.01; 0.02 or 0.05

Purpose

The Calmar-S is a volt/mA calibrator performs the following functions:

generates DC voltage, DC current, and pulse (frequency) voltage signal
measures DC current and converts DC current signal into pulse (frequency) signal to  calibrate measuring converters with standard (GOST 26.011) outputs (0.2, 5, 10 V or 5, 20 mA)
measures DC voltage and converts DC voltage into pulse (frequency) signal to calibrate measuring transducers with standard (GOST 26.011) outputs (0.2, 5, 10 V or 5 20 mA)
measures pulse signal frequency  and converts it into DC voltage signal
divides input pulse signal frequency
determines measurement errors of the instruments with pulse output (energy meters) by comparing the output frequency signals from the reference and tested instruments
calibrates “current loop” devices.

Communication ports: Ethernet and USB

Calmar-S is available in two versions:

“P” - portable design (powered from the battery or mains via the Power Adapter or USB power supply)

“L” – laboratory (desktop) design (powered from mains via the Power Adapter)

0%

Foreign analogues

Comparing Calmar-S with similar instruments

Accuracy specifications

Key parameters

Measurement ranges

Measurement or output setting error

class  0.01

class  0.02

class 0.05

Measured DC Voltage

From  -1.5Unom to +1.5Unom

±0,01 %

±0,02 %

±0,05 %

Generated DC Voltage, V

From -10,5 to +10,5

±1,0·10-3

±2,1·10-3

±5,2·10-3

Measured DC Current

From -1.5Inom to +1.5Inom

±0,01 %

±0,02 %

±0,05 %

Generated DC Current, mA

From -24 to +24

±0,0024

±0,0047

±0,012

Frequency of generated pulse signal, Hz

From 0 to 22500

±3·10-5·Fout



Software

Scope of supply

Scanning Head
Scanning heads for testing induction meters or meters with optical output
bag

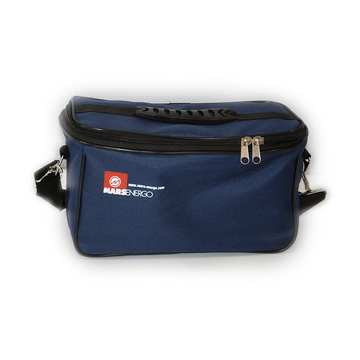

Calmar-S carrying case

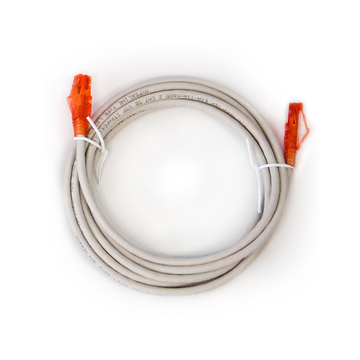

Ethernet PC connection cable

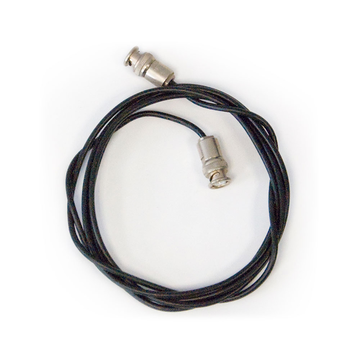

Cable for connecting to the F(P)IN connector

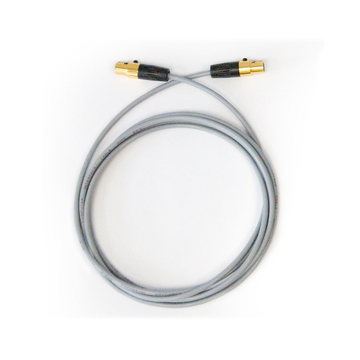

Cable for connecting to the FOUT connector

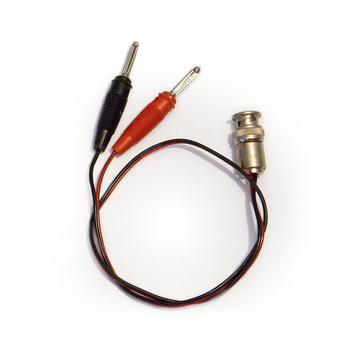

Cable for connecting to the FIN connector

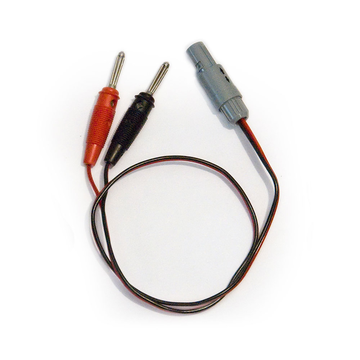

Cable for connecting to the UIN/UOUT, IIN/IOUT connectors

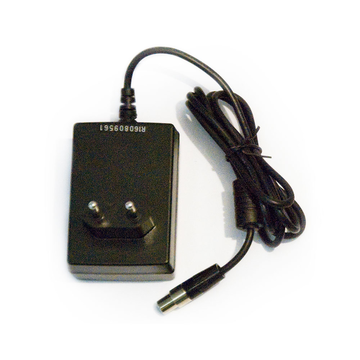

Power Adapter (UOUT = 12 V, IOUT MAX = 1.5 A)

PF
Pulse Former is designed for testing energy meters with optical (telemetry) output


Documentation
