Adjustable current source up to 6 kA

Purpose

IT5000 is an adjustable current source designed to generate AC current (within 0…6000 A range) to be passed through primary windings of the reference CT and CT under test.

IT5000 Cable Set



№



Cable type

Dimensions



Quantity

Cross section

Diameter

Max current, A

Length

1

«К-240»

240 mm2

32х16 mm

6000 А

2 m

2 pcs.

2

«К-120»

120 mm2

16 mm

1000 А

2 m

2 pcs.

3

«К-50»

50 mm2

11 mm

100 А

6 m

1 pcs.

4

«К-16»

16 mm2

8 mm

25 А

2 m

2 pcs.

5

«К-5»

5 mm2

4х8 mm

18 А

2 m

2 pcs.

6

Cable LATR-GT





20 А

4 m

1 pcs.

7

Power supply cable LATR-IT5000





20 А

2 m

1 pcs.

Scope of supply

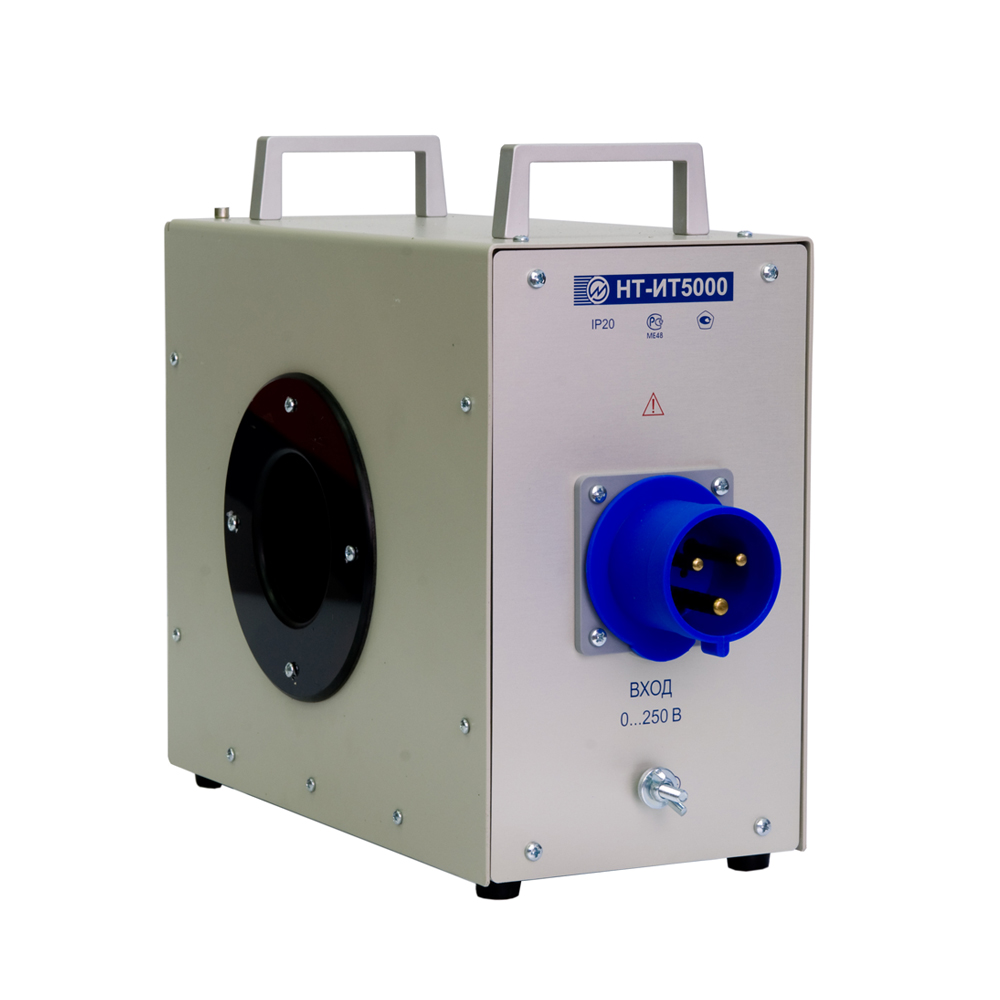

Generating transformer GT-IT5000

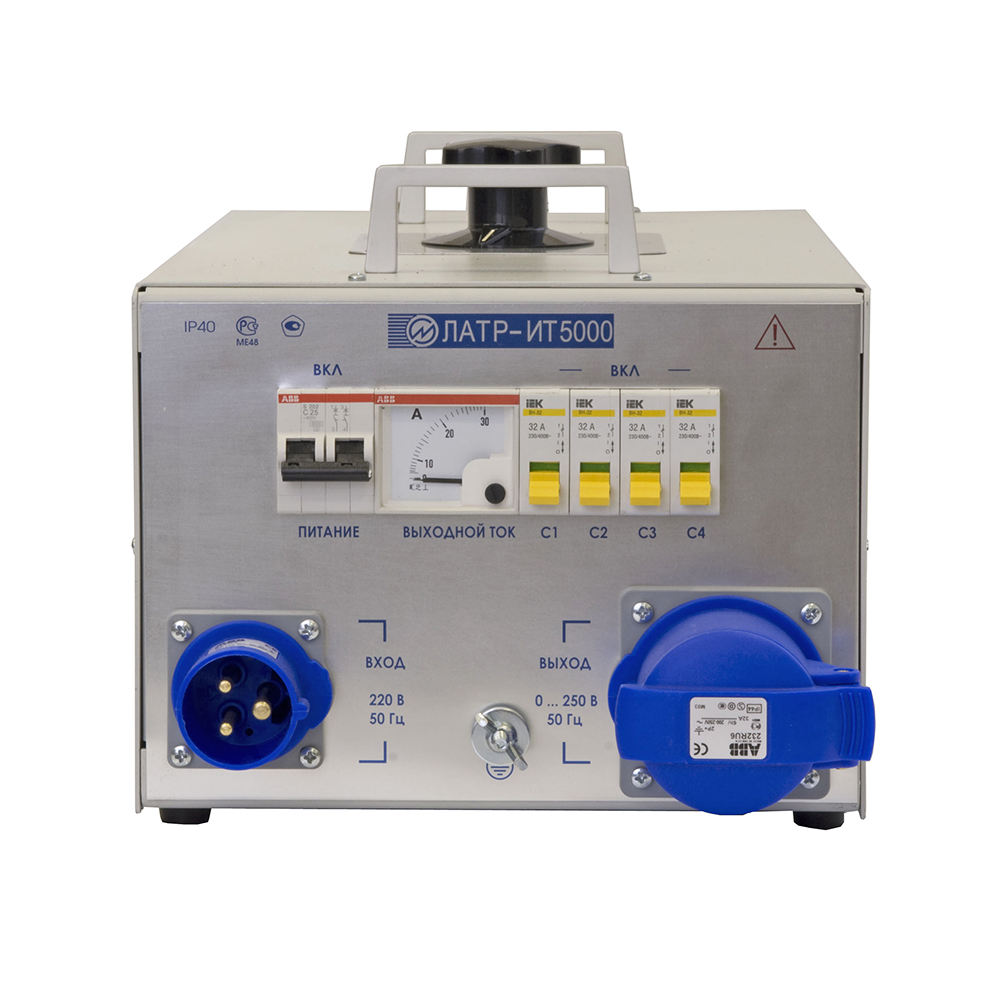

Regulating voltage transformer LATR-IT5000

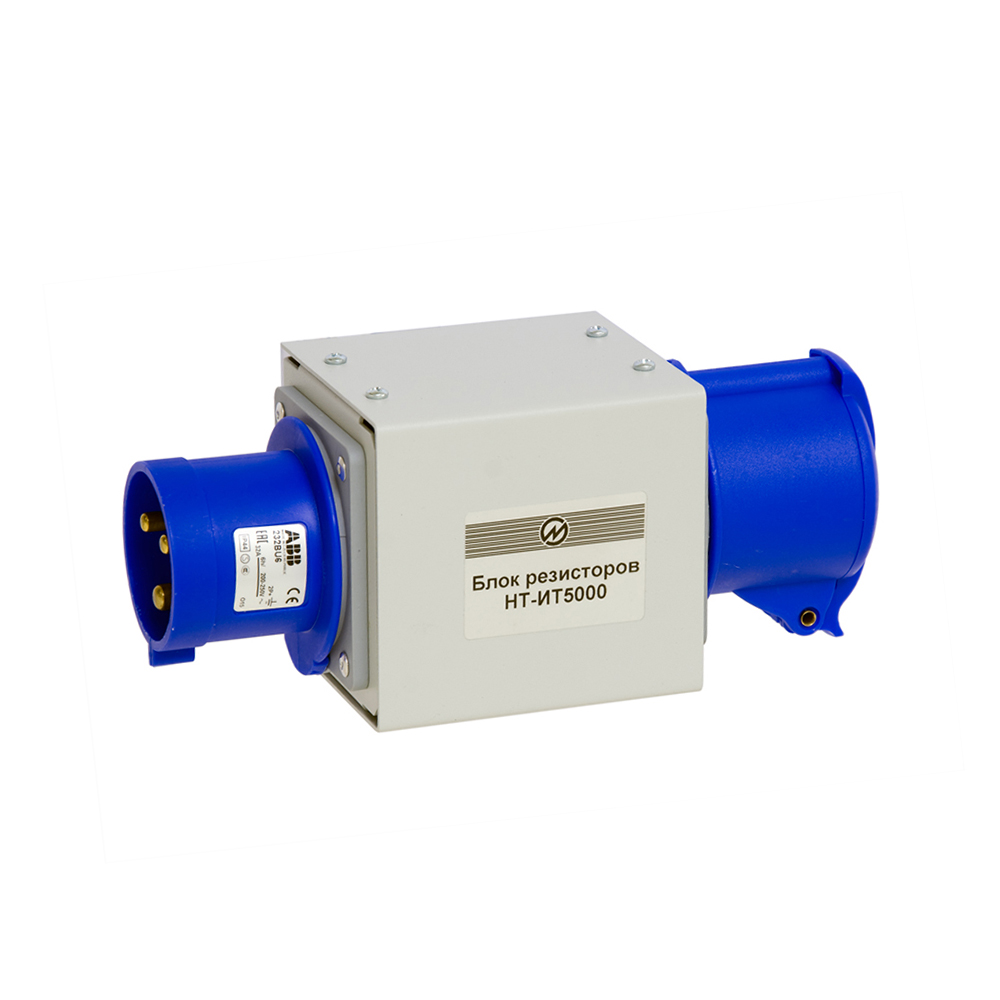

Resistor box GT-IT5000

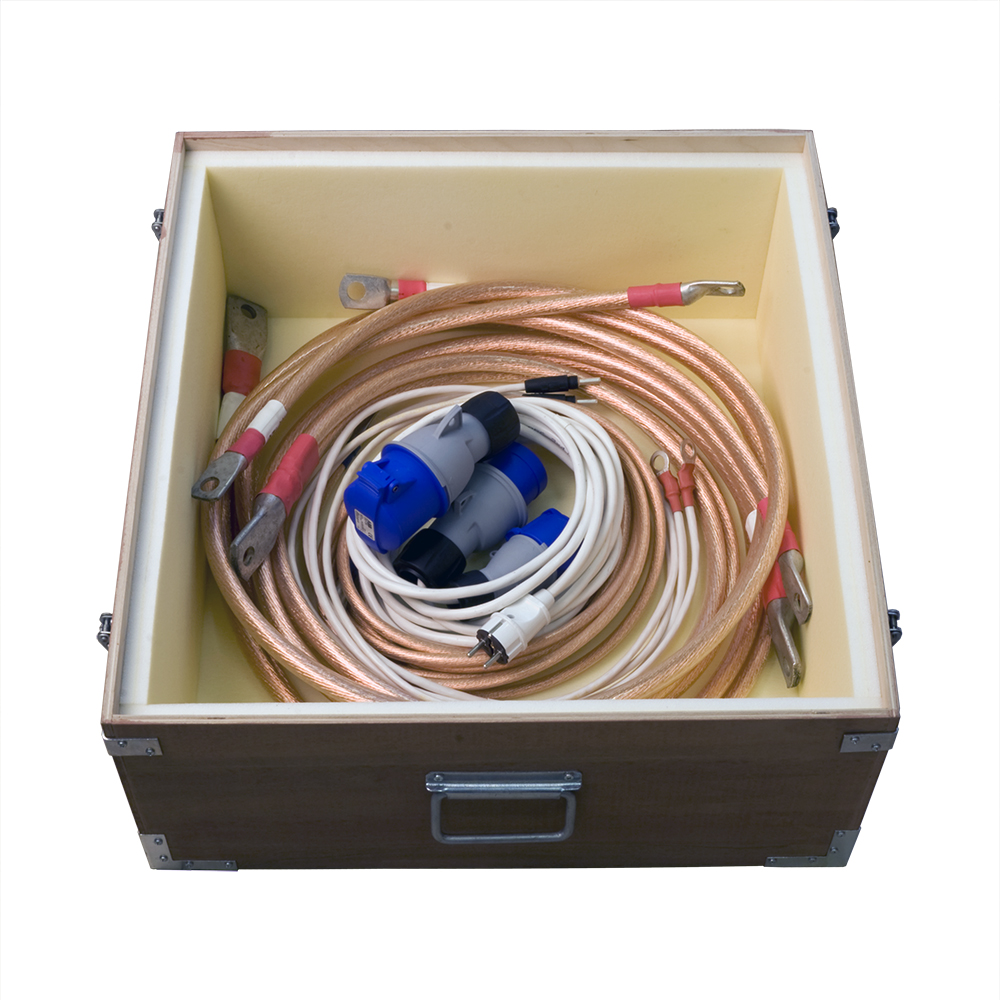

Set of cables

Documentation

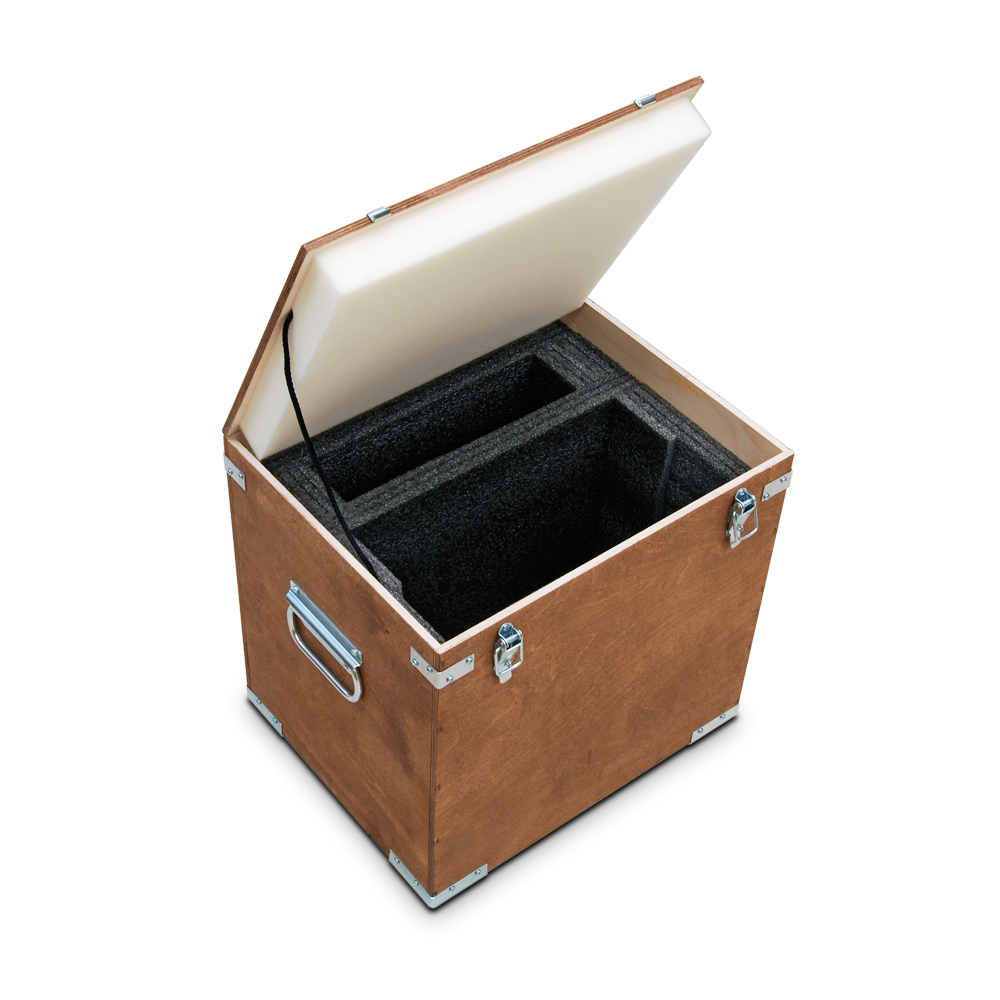

Transportation box



Documentation
