Energomonitor-3.1KM with EMT-200/EMT-500

Test Set for EVSE with DC output

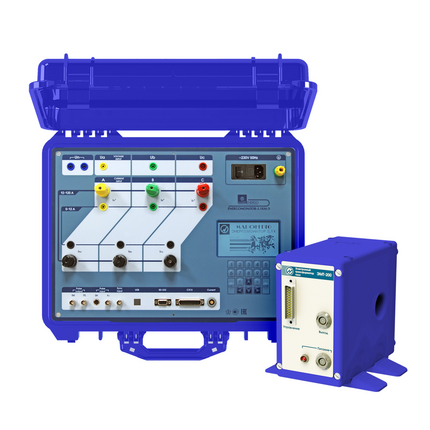

Multifunctional Reference Standard Energomonitor 3.1KM together with electronic current transformer EMT-200/EMT-500

Purpose

The Test Set provides for on-site testing (calibration) of Electric Vehicle Supply Equipment (EVSE) with DC output in 2 ways:
(1) as a whole unit, or
(2) by testing EVSE components individually.

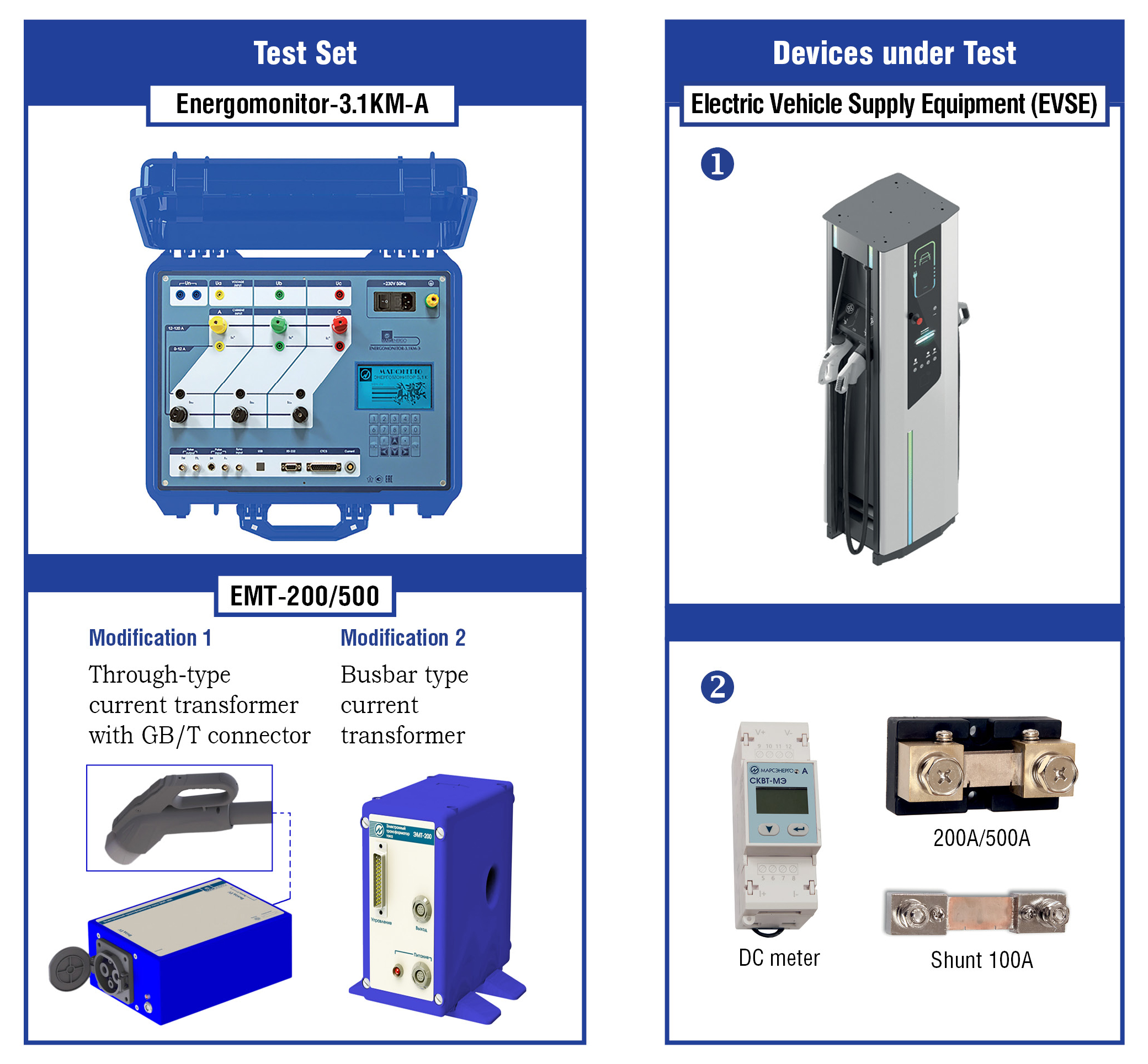

emt-200 purpose

Benefits of EMT-200/EMT-500

There are 2 design modifications:

1. Through-type current transformer provides connection to EVSE via CCS2 and GB/T standard connectors.

2. Busbar type current transformer as part of a test set (consisting of a current and voltage source) is used for calibration of a DC meter together with a current shunt.

Application

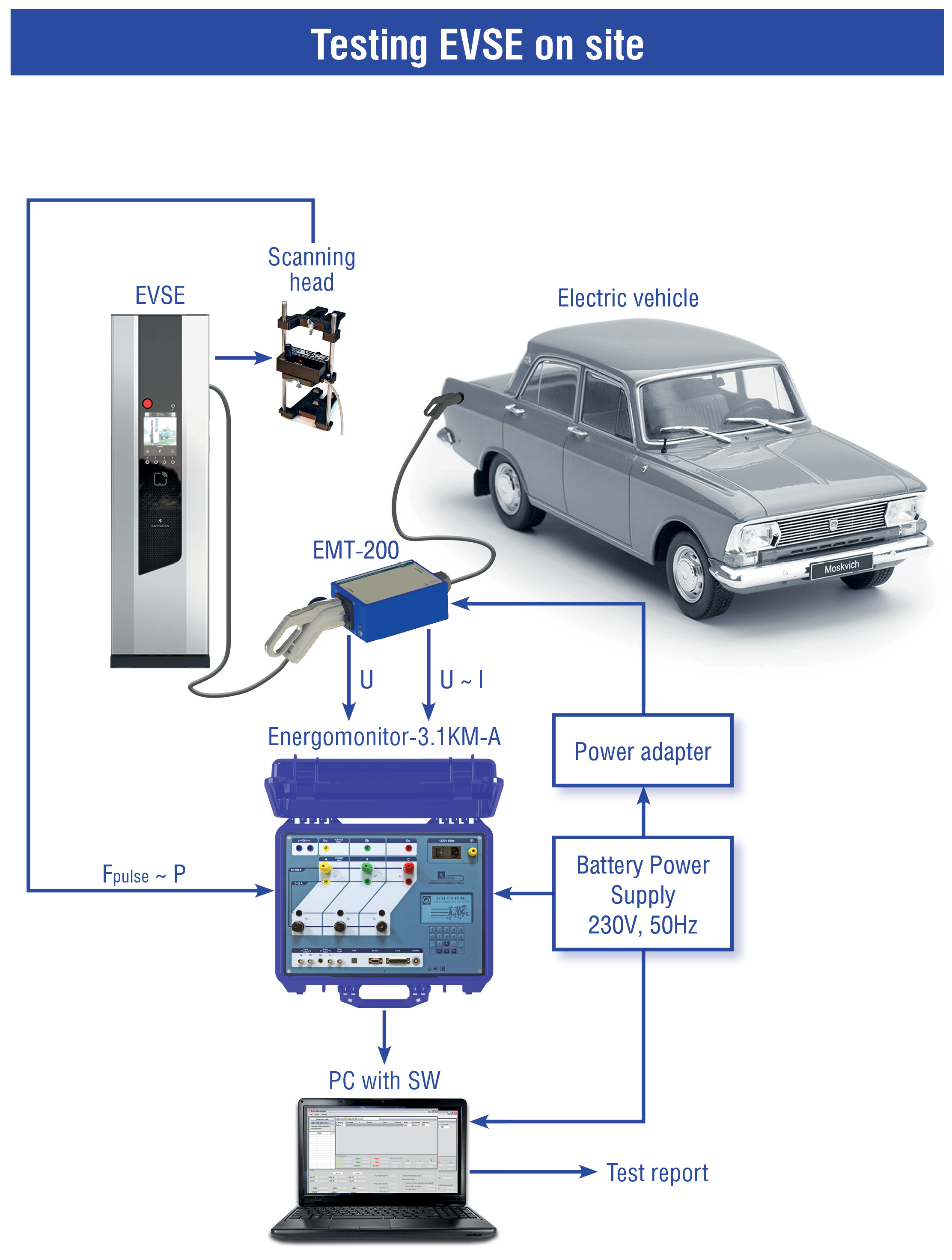

emt-200 app1
emt-200 app2

Accuracy Specifications of Energomonitor-3.1KM + EMT-200/500 Test Set

Parameter Measurement range Measurement error Modification
1

Voltage

Rated voltages:

10, 30, 60, 120, 240, 480, 800 V

10 ... 1000 V ±0,02 % / ±0,05 %
2

Current*

Rated currents:

1, 2, 10, 20, 100, 200 (500) А

0,1 ... 250 А

0,1 ... 500 А
±0,02 % / ±0,05 %

EMT-200

EMT-500
3 Power

0.01...250 kW

0.01...500 kW
±0,05 % / ±0,1 %

EMT-200

EMT-500

* Two modifications differing in the current measurement range

General specifications of current transformers EMT-200/500

Parameter Value

Rated I/U transformation ratio

1.33 to 133 A/V

Max output voltage

Max output voltage
Accuracy (error of transformation) ±0.05%/±0.02%
Power supply (via external adapter) AC 195...253 V 47...63 Hz
AC power consumption AC power consumption
Dimensions

161 × 85 × 144 mm /

305 × 200 × 120.5 mm, or less

Weight 3 kg/ 5 kg, or less
Operating temperature range

–10 ... +50 °С

Scope of supply

em-3.1kmnew
Multifunctional reference standard  Energomonitor-3.1KM
blok-transofrmatora
Electronic current transformer EMT-200/500
istochnik-toka
Current source DC 200 A / 500 A
istochnik-toka
Voltage source DC 1000 V
dsc-2748
Scanning head
blok-pitaniya
Battery power supply
stojka
Test Bench for DC meters
Software E-TransfomerTest
Software Energomonitor-EVSE
cables
Set of cables
dok
User manual
upakovka3
Transportation box
