MarsGen-61850

Project status: Research & Development

Purpose

Testing and calibration of electrical energy meters, PQ analyzers and phasor measurement units (PMU) with 61850-9-2LE outputs.

Synthesis of IEC 61850-9-2 data streams in compliance with all timing, continuity and UTC synchronization requirements for packet data transmission.

Description

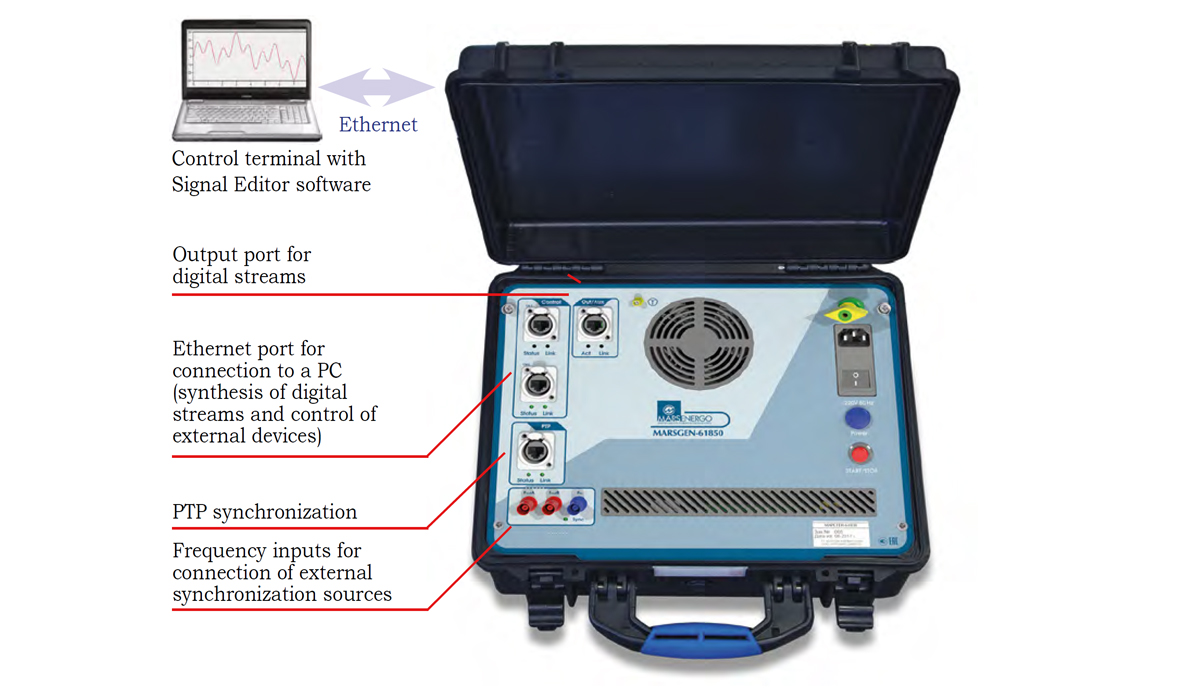

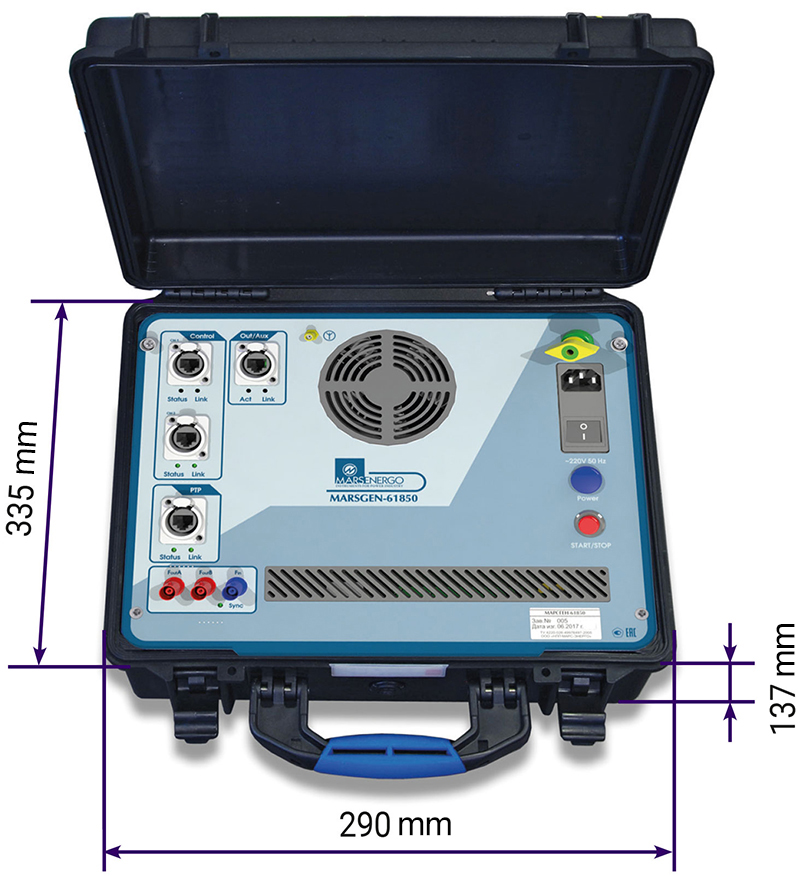

Marsgen-61850 comes as a single unit in an IP67 enclosure. The following connectors are installed under a hermetically sealed cover:

  • Ethernet for connection to a PC which synthesizes digital streams and controls the whole instrument;
  • Digital stream output for connection to a SFR adapter;
  • Frequency inputs/outputs (BNC) for synchronization with an external source;

MarsGen-61850 is controlled from an external control terminal (PC) by the specialized software.

Specifications

Parameter

Value

Synchronization:

1PPS (1 Hz)

PTP

Error of setting:

±2·10–6 Hz, <1 μs

IEEE 1588

Sampling frequency on the IEC 61850-9-2 output, samples per second

4000, 12800, 32000 (standard)

1000, 2000, 16000, 64000 (optional)

Digital data streams generated

IEC 61850-9-2LE SV80/SV256/SV640,

IEC 61850-9-2

4 × I, 4 × U

Reference channels available

Ua, Ub, Uc, Un, Ia, Ib, Ic, In

Setting accuracy of digital signals

Parameter

Unit

Range

Increments

Intrinsic error

Fundamental harmonic

Harmonic order



1



Fundamental frequency

Hz

10 to 1000

0.00001

±0.0003 %

Voltage amplitude

V

0 to 1000

10 μV

±0.01 %

Current amplitude

A

0 to 200

1 μA

±0.01 %

Phase with respect to the start of generation

Degrees

Radians

-180 … +180

-π … +π

0.0001

0.000001

±0.01 %

Phase with respect to the reference channel

Degrees

Radians

-180 … +180

-π … +π

0.0001

0.000001

±0.01 %

Waveforms

Sine, triangle, meander, ramp, subharmonics, even harmonics, phase control, signals according to IEE С37.118.1 and С37.118.1А, packet loss

Other harmonics

Harmonic order



0.1–0.9 ... 1.1–100.5

0.1



Amplitude of voltage or current harmonic

% of fundamental

0 to 1000

0.001

±0.01 %
