MTS-ME 3.1KM-S

MTS-ME 3.1KM-S

MTS-ME 3.1KM-S

Stationary test system

National Registry No 57346-14 (extended until 15.03.2029)

Semi-automatic test system for accuracy testing (calibration and verification) of energy meters and instruments for electrical measurements (designed as a complete operator’s workbench controlled by PC software)

Accuracy classes: 0.02, 0.05

Purpose

The test bench performs tests for simple or smart meters and provides expanded sets of measurements according to customer needs.

Basic types of tested equipment:
Single- and three-phase active and reactive energy meters of accuracy class 0.05 or less accurate including smart meters with integrated power quality measurement function (class S)
Single- and three-phase meters measuring active power, reactive power, phase angles, frequency, voltage, and current of accuracy class 0.05 or less accurate up to 120 A, 997 V (AC measurements) and up to 100 A, 600 V (DC measurements)
Measuring converters of voltage, current, active power, and reactive power of accuracy class 0.2 with unified output low-voltage signals (operating in the industrial frequency range)
Power quality analysers (compliant with Russian state standard GOST 32144) equipped with contactless current sensors up to 3000 A.

Application

The test bench measures signals or generates signals with the specified values for:
Voltage, current, power (AC/DC)
Frequency
Angles U–I, U–U
Harmonics (interharmonics) according to IEC 61000-4-7
Unbalance
Events
Flicker (IEC 61000-4-15).

Manufacturers of energy meters, metrology labs of industrial enterprises, and Rosstandart entities use the MTS-ME 3.1KM-S as a working standard of AC power of the first grade (class 0.02) and second grade (class 0.05).

Multi-position test bench

The test bench can be equipped with a multi-position meter suspension rack STB (3/5/10/20/positions) for testing up to 20 devices at one time.

Environment monitor “ME-Service”

The set expands functionality of the test bench providing automatic generation of test reports according to ISO/IEC 17025-2009.

System “ME-MarsView” (in development)

Computer vision based solution for automatic testing/calibration of measuring instruments

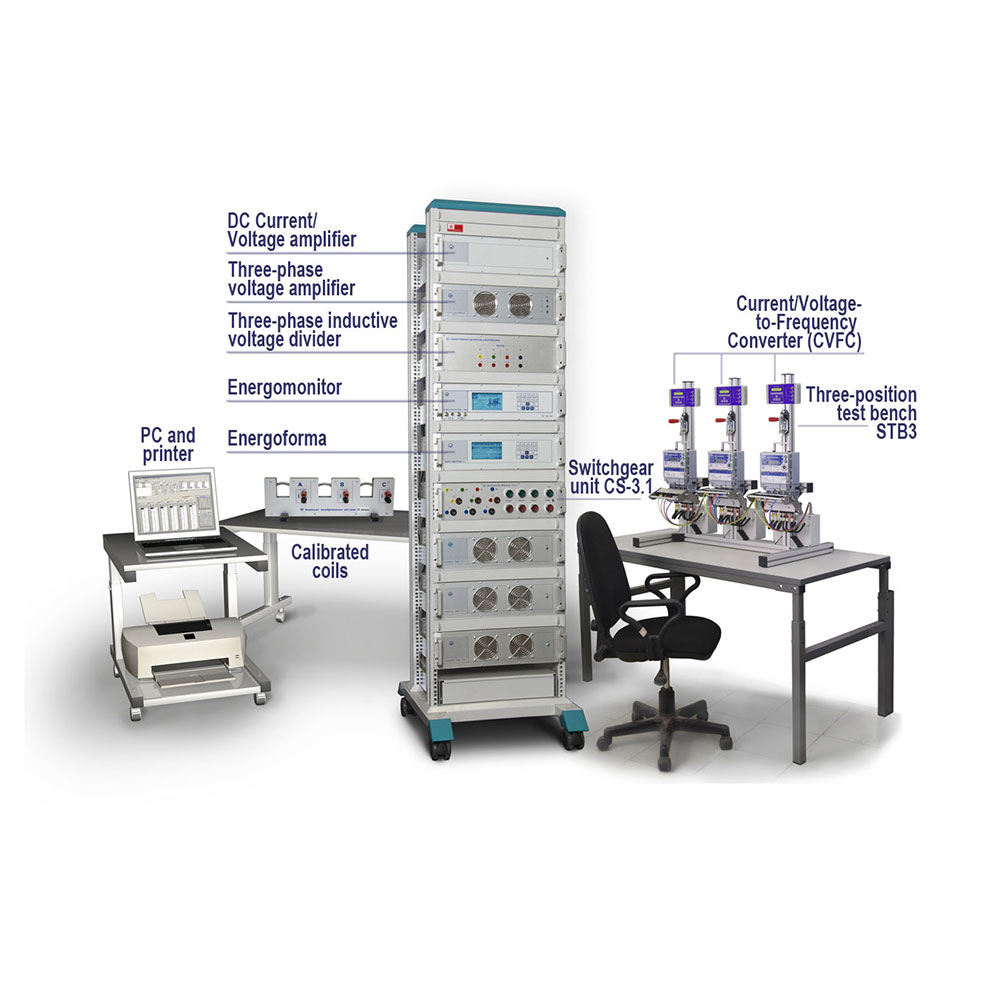

Instrument rack with the most complete set of equipment

Specifications

Mains
power supply

207 ... 253 V
47.5 ... 52.5 Hz

AC power
consumption

1500 VA, or less

Operating
temperature range

+10 to +30 °С

Weight

70 kg, or less

Parameter

Range

Limits of permissible error

Accuracy cl. 0.02

Accuracy cl. 0.05

Voltage (AC/DC)
Measurement ranges UN = 1, 2, 5, 10, 30,
60, 120, 240, 480, 800 V

0.1 ... 960 V

±0.01 %

±0.02 %

Current (AC/DC)
Measurement ranges IN = 0.05, 0.1, 0.25,
0.5, 1, 2.5, 5, 10, 25, 50, 100 А

1 mA ... 120 А

±0.01 %

±0.02 %

Frequency

42 ... 70 Hz
400 Hz (optional)

Absolute
±0.001 Hz

Absolute
±0.003 Hz

Phase shift U–I, U–U

–180° ... +180°

Absolute
±0.01°

Power factor

–1.0 ... +1.0

Absolute
±0.001

Active power



±0.015 %

±0.05 %

Reactive power



±0.03 %

±0.1 %

Harmonics 2 ... 50, THD

According to IEC 61000-4-7

Interharmonics 0.5 ... 50.5

Flicker

According to IEC 61000-4-15

Power quality parameters

According to IEC 61000-4-30, class A




Parameter

Output setting range

In increments of

Value

Phase voltage:

6 ... 576 V

0.1 ... 6 V (optional)

0.01 V



Distortion





≤0.5 %

Power per phase (3/5/10/20-position model)





150/150/300*/600* VA

Current:

1 mA ... 120 A

0.0001 A



Distortion





≤0.5 %

Power per phase (3/5/10/20-position model)





200/300/600*/1200* VA

DC voltage*:

0 ... 600 V





Power per phase (3/5/10/20-position model)





600 W

DC current*:

0 ... 100 А





Power per phase (3/5/10/20-position model)





600 W

Instability of output settings





0.03 %/min, or less

Fundamental frequency

16 ... 450 Hz

0.01 Hz



Phase angle setting range

–180° ... +180°

±0.01°



Harmonics

2 ... 50

Interharmonics

0.5 ... 50.5

Voltage dips and swells, Flicker

According to Russian state standard GOST R 8.656

* if the DC current source is present.



Software

 Energoforma
Software for performing automatic testing (calibration) using instruments of the Energomonitor and Energoforma family

 Energoforma-MTS
Software for automatic testing of energy meters and measuring converters of current, voltage, frequency etc. with use of error calculators Calmar-S.

 EmCounter
Software for managing measurement logs and databases of tested devices

 EfCalibr
Software for verification (calibration) of waveform generators Energoforma 3.1.

Advantages

Suitable for testing smart meters

High-capacity: up to 20 meters can be tested at a time

Flexible: testing can be performed either automatically or manually

Functional: due to the software that provides convenient tools for creating test sequences, reading and managing test results, and automatic generation of test reports.

Scope of supply

Энергоформа-3.1
Energoforma-3.1 – 1 unit
Three-phase Current&Voltage Generator

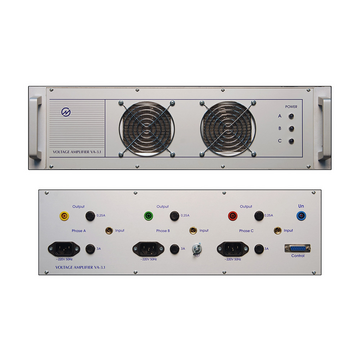

VA-3.1 – 1 unit
Three-phase amplifier of AC voltage

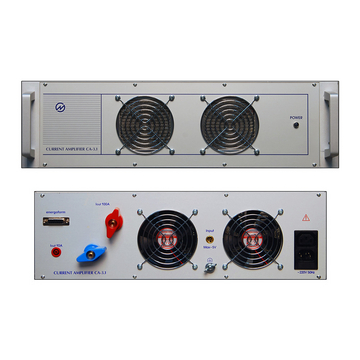

CA-3.1 – 3 units
Amplifier of AC current

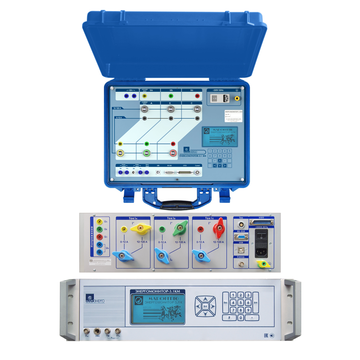

Energomonitor-3.1KM-S – 1 unit
Reference standard (accuracy class 0.02 and 0.05)

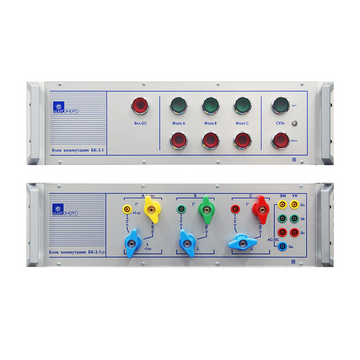

CS-3.1 – 1 unit
Switchgear module designed to control amplifiers VA 3.1 and CA 3.1)and to provide connections within the system
Set of cables
Power supply and connection cables
Instrument rack – 1 unit
Rack mount (for mounting system modules) equipped with a socket board and storage box for cables
Documentation
Equipment Certificate User Manual
Flash drive with software

Transportation box

DCS
Source of DC test signals

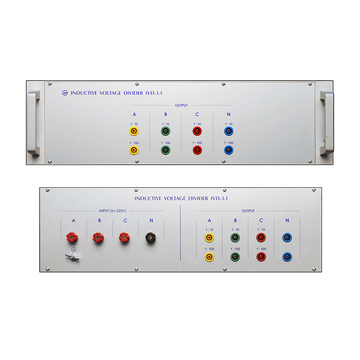

DNI-3.1
Three-phase induction voltage divider 1:10, 1:100

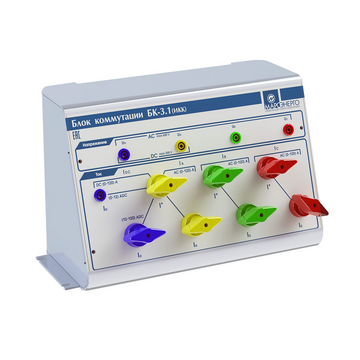

BCN-3.1
Desktop commutation module

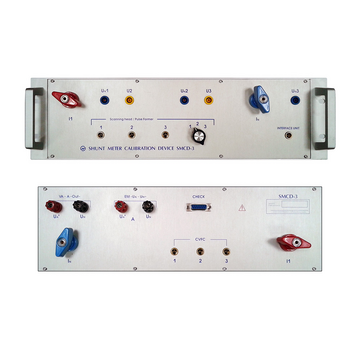

SMCD-3
Insulation voltage transformer for testing single-phase energy meters with closed links between current and voltage circuits (up to 3 meters)
TTR-3.100
Insulation current transformer for testing 3-phase energy meters with closed links between current and voltage circuits
STB
Meter suspension rack
Error calculator VP-3.1
performs meter error measurement (accuracy classes 0.01, 0.02, and 0.05)
Ethernet switch
connects the Error Calculator VP-3.1 to a PC

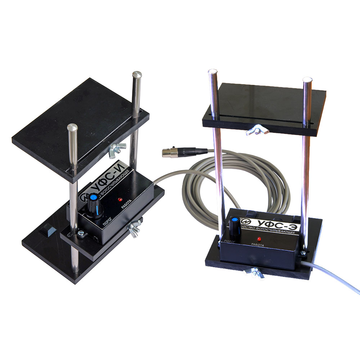

Scanning heads SH-E and SH-I
Accessories for reading pulses from meters with optical pulse output (SH-E) and induction meters (SH-I)
Pulse Former PF
An accessory for reading pulses from meters with electrical pulse output or entering pulses manually
TCM-02C
Time Correction Module
Environment monitor

Laptop and printer
Accessories necessary to provide automatic testing and printing test reports
Work table, rolling table and operator chair

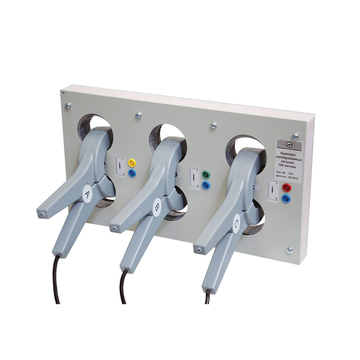

Coil adapters KT
Set of 10, 20, 100, or 300-turn coils for testing instruments measuring current via contactless current sensors as a whole unit or for testing such sensors themselves


Documentation



User's Manual (1.55 Mb, pdf)
